dagger

A Python implementation for controlling Pluto Drone.

Installation

Installing the package from source

Get the latest source by cloning this repo:

git clone https://github.com/rohithvarma3000/dagger.git

Change to dagger folder:
```
cd dagger
```
Install the dependencies:
```
pip install -r requirements.txt
```
Install dagger:
```
pip install .
```

Examples

Connecting to Pluto

import dagger
Pluto_IP = "192.168.4.1"
Pluto_PORT = 23
pluto = dagger.PlutoConnection()
pluto.connect((Pluto_IP, Pluto_PORT))

Intiating the SetRawRc Object for Controlling the pluto Drone using the RC params

rc = dagger.SetRawRC(pluto)

Arming the drone

rc.arm_drone()

Disarming the drone:

rc.disarm_drone()

General Information

How to Use?

Refer to our tutorial to get started with dagger

Working Principles

Sockets

We connected to Pluto first by connecting our device to the drone’s hotspot, then we used TCP sockets to connect to the drone using IPV4 scheme and socket library in python to do the same. The server iss hosted at 192.168.4.1:23 We sent the MSP Packet data encoded as bytes to pluto using sockets, the details about the packet is explained below.

MSP Packets

We used MSP Packet scheme to communicate with Pluto, ie send commands, request data and calibrate the drone. The data of the packet was first encoded into bytes and then sent as a byte stream (array of bytes) to the drone. The basic structure of the packet has been explained below.

Structure of the Packet

Header	Direction	Message Length	Type of Payload	Message Data	Checksum
2 Bytes	1 Byte	1 Byte	1 Byte	N Bytes	1 Byte

Details of the Packet

Type of Byte	ASCII	Hexadecimal
Header	$M	0x24 0x4d

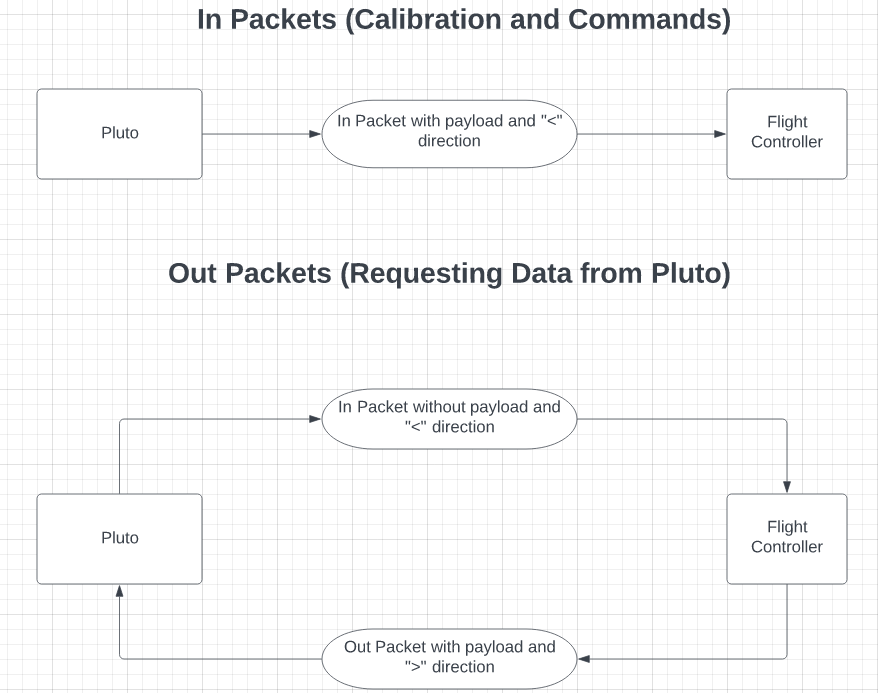

Direction	‘<’ or ‘>’	0x3c (to the drone) or 0x3e (from the drone)
Message Length		0x00 - 0xff
Type of Payload		0x01 - 0xff
Payload		Message Body encoded into N bytes
Checksum		XOR of Bytes of “Msg length”, “Command” and all bytes of “Payload”
